Garmin LiveScope Plus Ice House System [020-00332-00]

Garmin LiveScope Plus Ice House System [020-00332-00]

Regular price $4,299.99 USD
Regular price $4,699.99 USD Sale price $4,299.99 USD
Sale Sold out

LiveScope™ Plus Ice House System

Upgrade your on-ice experience with the GPSMAP® 8610xsv chartplotter, LiveScope Plus System, and everything else you’ll need to catch more fish.

Features:

  • 10” full HD IPS touchscreen display
  • Share to your TV or external display via HDMI output (HDMI cable not included)
  • LiveScope™ forward and LiveScope™ down modes
  • Preloaded with Garmin Navionics+™ mapping of 25,000+ inland and coastal lakes

GPSMAP® 8610xsv

This chartplotter features a 10” full HD IPS display with touchscreen and HDMI output, so you can display sonar on your TV or external display.

Ice House System

Get a GLS™ 10 sonar black box with a swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.

LiveScope Modes

With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.

Garmin Navionics+ Maps

You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

Custom Combos

You can create custom pages that combine sonar, flashers, and maps on your display.

Built-In Sonar

See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.

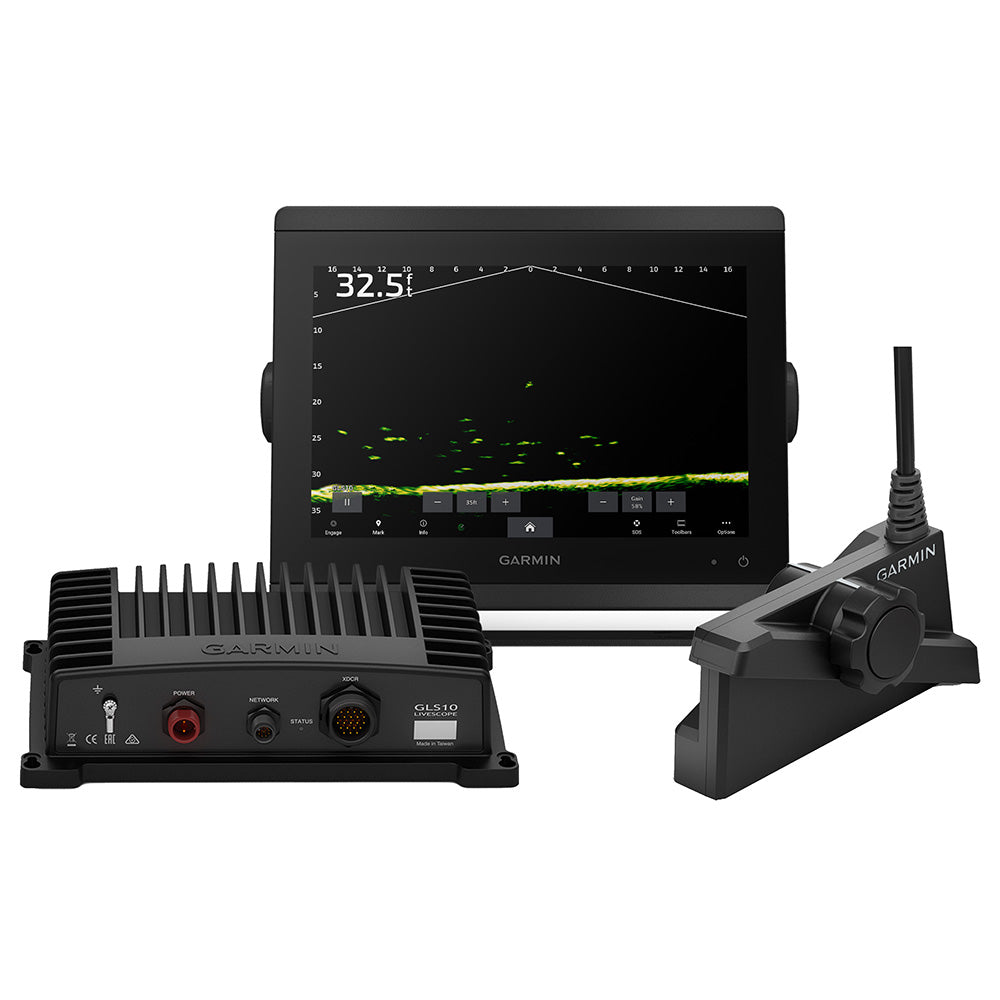

In the Box:

  • GPSMAP 8610xsv with preloaded Garmin Navionics+™ Coastal Charts and Inland Mapping for U.S. or Canada
  • LiveScope Plus LVS34-IF transducer
  • GLS™ 10 black box sonar module with power and network cables
  • Ice fishing pole mount
  • Documentation

General Specifications:

  • Dimensions: 10.25 x 8.0625 x 2.95 in. / 25.9 x 20.5 x 7.5 cm
  • Touchscreen: Yes
  • Input: Touchscreen
  • Display Size: 8.6 x 5.4 in., 10.1" in. diagonal / 21.8 x 13.7 cm; 25.7 cm diagonal
  • Display Resolution: 1920 x 1200 pixels
  • Display Type: WVGA, IPS
  • Weight: 15.4 lbs / 7.0 kg
  • Waterproof: IPX7

Maps & Memory:

  • Accepts Data Cards: 2 microSD™ cards
  • Waypoints: 5000
  • Track Points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100

Ice Fishing Details:

  • Bag Size: None
  • Included Transducer: LiveScope™ Plus System with LVS34-IF
  • Transducer Holding Feature: Pole mount

Sensors:

  • Has Built-in Receiver: Yes
  • Receiver: 10 Hz
  • NMEA 2000 Compatible: Yes
  • GPS: Yes
  • Glonass: Yes
  • Galileo: Yes
  • Supports Waas: Yes

Built-in Maps:

  • Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)

Optional Map Support:

  • Bluechart G3: Yes
  • Bluechart G3 Vision: Yes
  • Lakevü G3: Yes
  • Lakevü G3 Ultra: Yes
  • Garmin Navionics+: Yes
  • Garmin Navionics+ VIision+™: Yes
  • TOPO: Yes
  • Standrad Mapping: Yes
  • Garmin Quickdraw Contours: Yes
  • Raster Chart Support: Yes

Chartplotter Features:

  • ActiveCaptain® Compatable: Yes

Electrical Features:

  • Power Input: 10 to 32 Vdc

Sonar Features & Specifications:

  • Displays Sonar: Yes
  • Power Output: 1 kW
  • Traditional Sonar (Dual Frequency/Beam): Built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • ClearVü™: Built-in 260/455/800/1000/1200 kHz
  • SideVü™: Built-in 260/455/800/1000/1200 kHz
  • Panoptix™ Sonar: Yes
  • Livescope; Yes

Connections:

  • NMEA 2000® Ports: 1
  • Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
  • Video Output Ports: 1 HDMI
  • Garmin Marine Network Ports: 2
  • 8-Pin Transducer Ports: Yes
  • 12-Pin Transducer Ports: Yes
  • Bluetooth® Pairing: Yes
  • Ant+ (Connectivity): Yes
  • Garmin Wi-Fi Network (Local Connection): Yes

WarningWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

  • Included Transducer: LiveScopeu2122 Plus System with LVS34-IF
  • Screen Size: 10"
  • Touchscreen: Yes
  • Transducer Included: Yes
  • Box Dimensions: 12"H x 17"W x 22"L WT: 27 lbs
  • UPC: 753759325350
